OB2-STDREM

FCC ID

Application Frequency Range	Final Action Date Granted
zTFMxUSztwE6hYlNlNJg5g== 314.8-315.2	1999-04-14 APPROVED

File Name	Document Type	Date	Direct

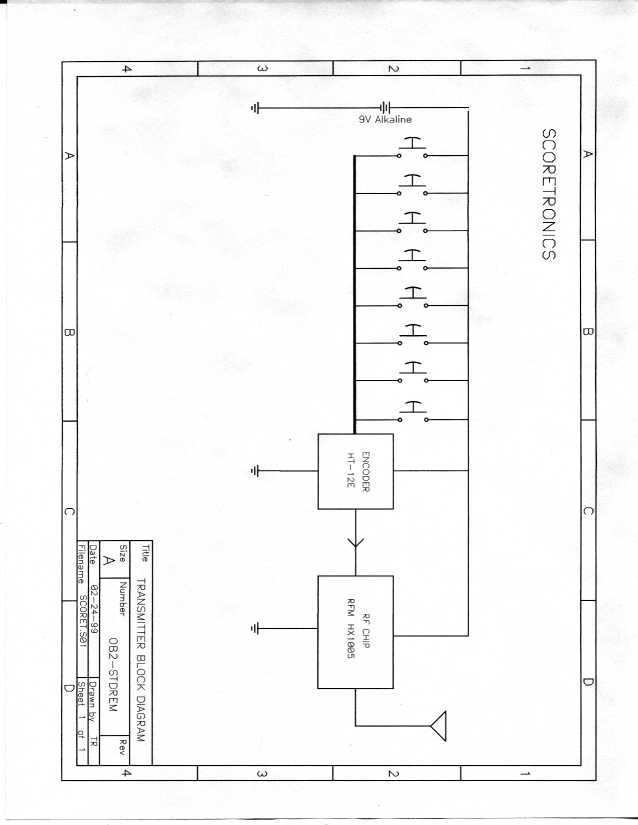

block diagram	Block Diagram	1999-04-14 00:00:00	jpeg
test data sheet	Test Report	1999-04-14 00:00:00	jpeg
pc board back with membrane switches	Internal Photos	1999-04-14 00:00:00	jpeg
label placement	ID Label/Location Info	1999-04-14 00:00:00	jpeg

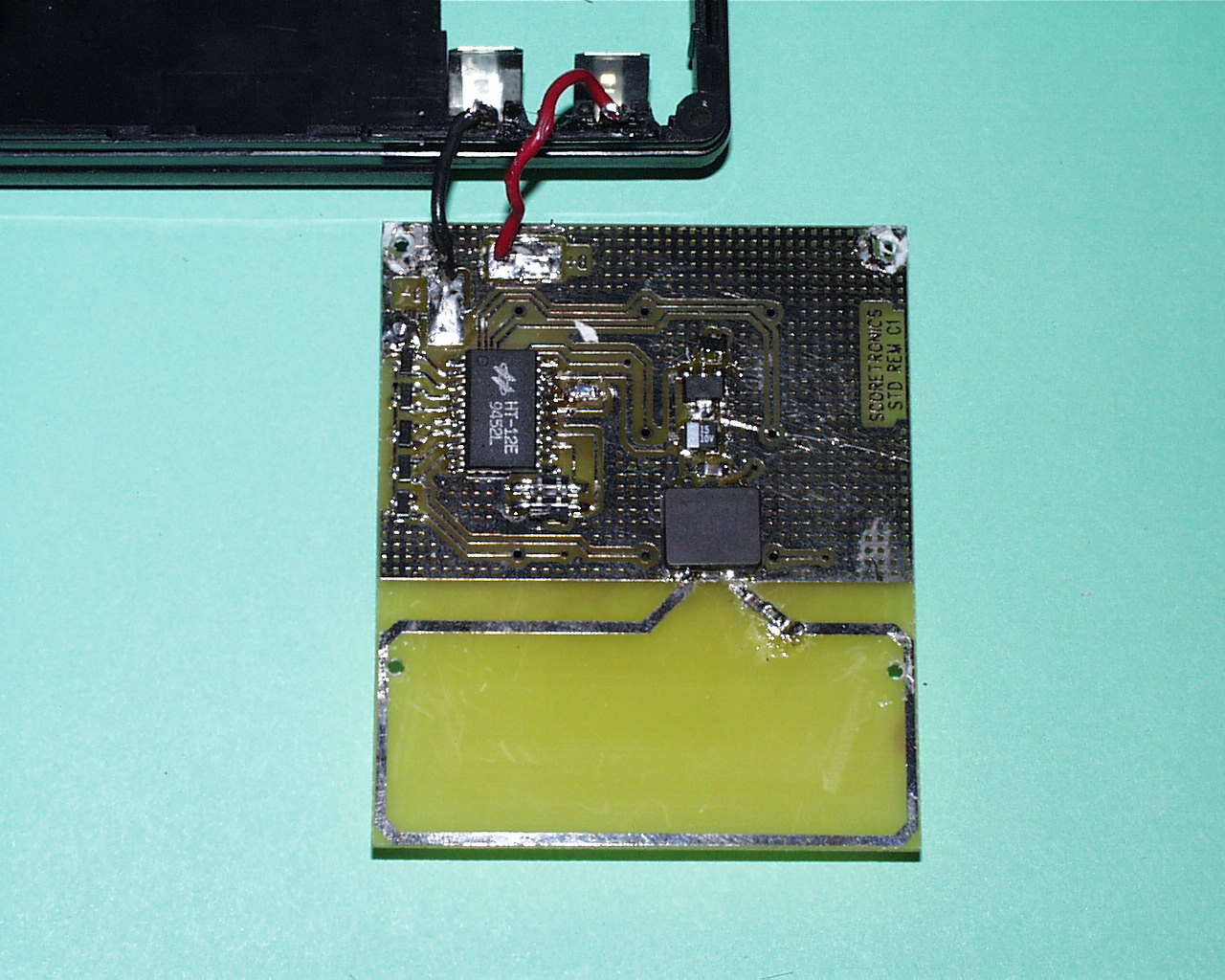

pcb top side	Internal Photos	1999-04-14 00:00:00	jpeg

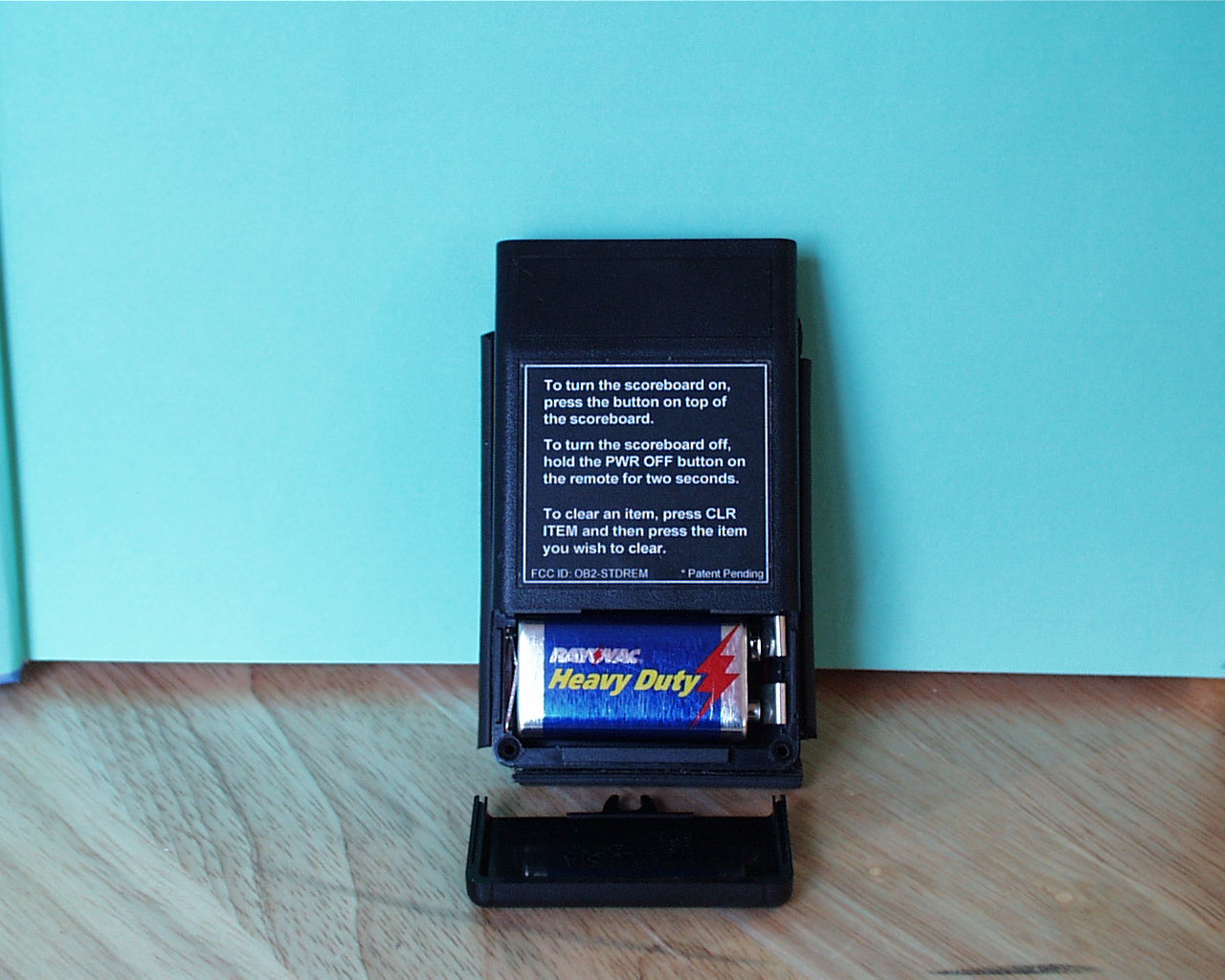

battery access	External Photos	1999-04-14 00:00:00	jpeg

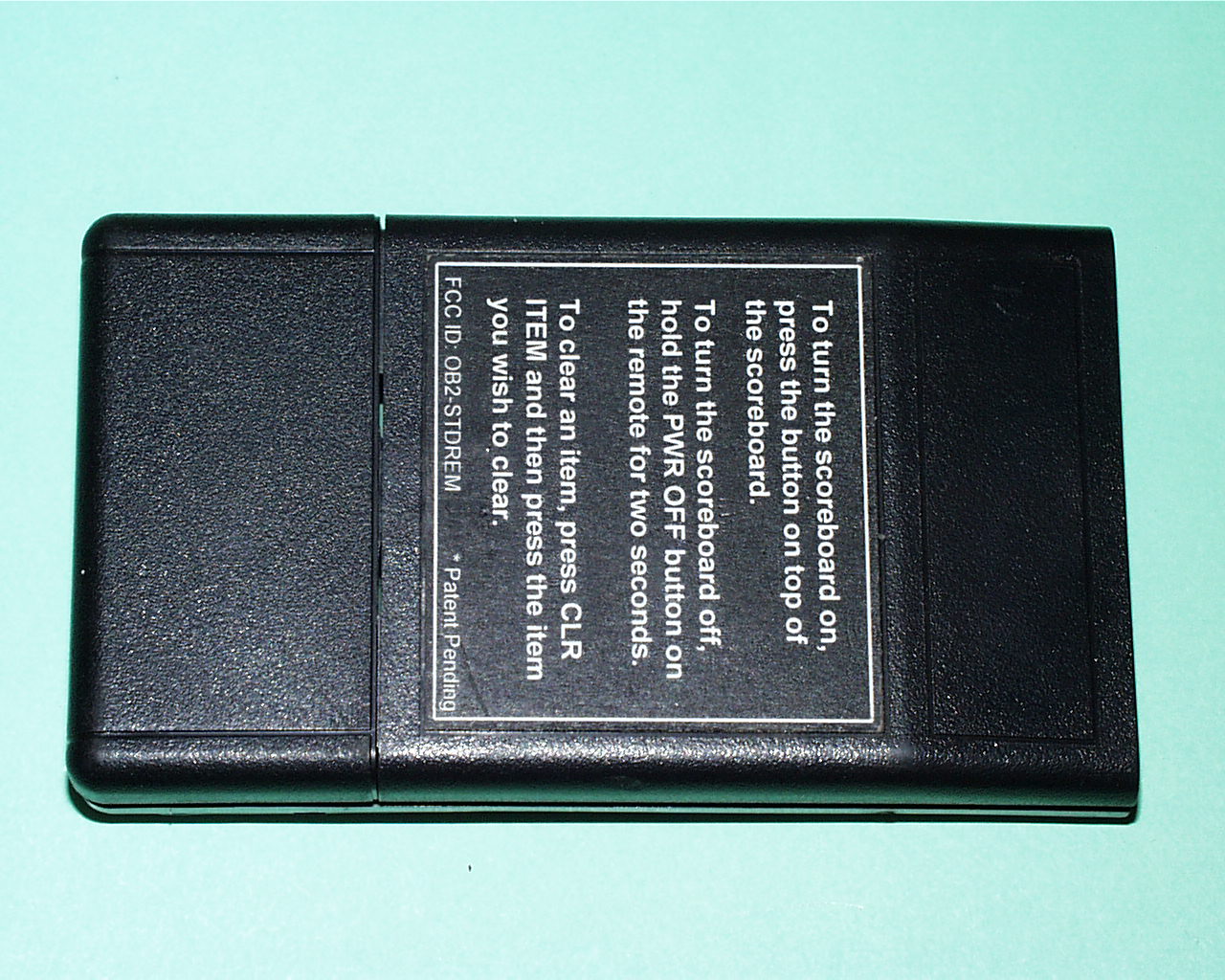

case back	External Photos	1999-04-14 00:00:00	jpeg
case front showing keypad	External Photos	1999-04-14 00:00:00	jpeg
schematic	Schematics	1999-04-14 00:00:00	pdf
circuit description	Operational Description	1999-04-14 00:00:00	pdf
test report	Test Report	1999-04-14 00:00:00	pdf
position 3	Test Setup Photos	1999-04-14 00:00:00	jpeg
position 2	Test Setup Photos	1999-04-14 00:00:00	jpeg
position1	Test Setup Photos	1999-04-14 00:00:00	jpeg
time domain 6 address frames over 100ms period	Test Report	1999-04-14 00:00:00	jpeg

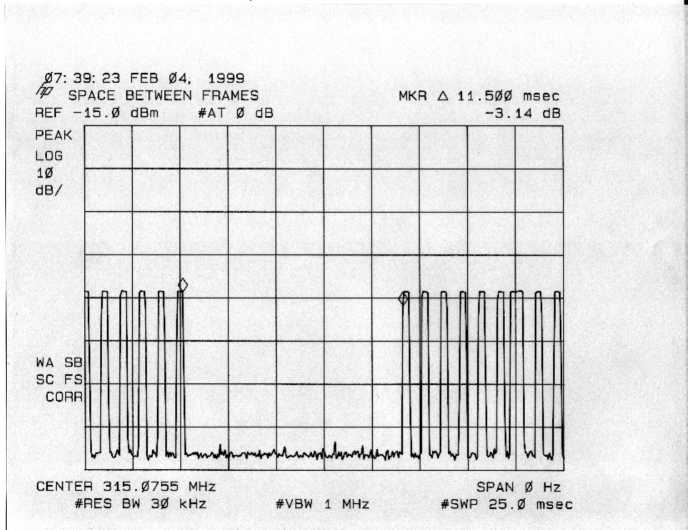

time domain5 frame spacing	Test Report	1999-04-14 00:00:00	jpeg

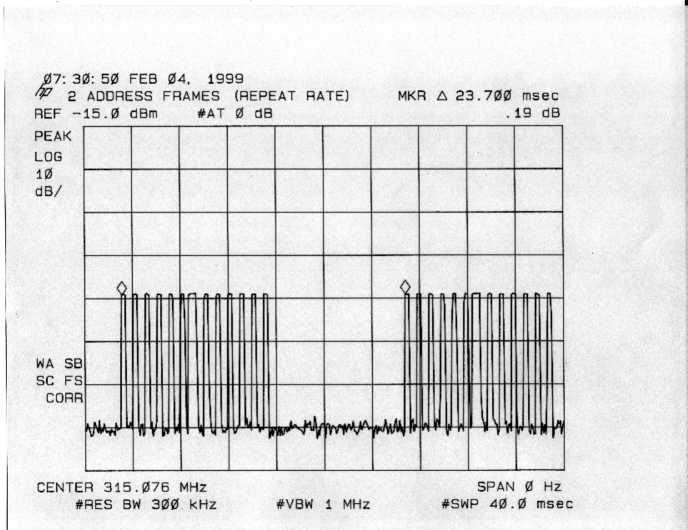

time domain 4 two address frames 23.7 ms apart	Test Report	1999-04-14 00:00:00	jpeg

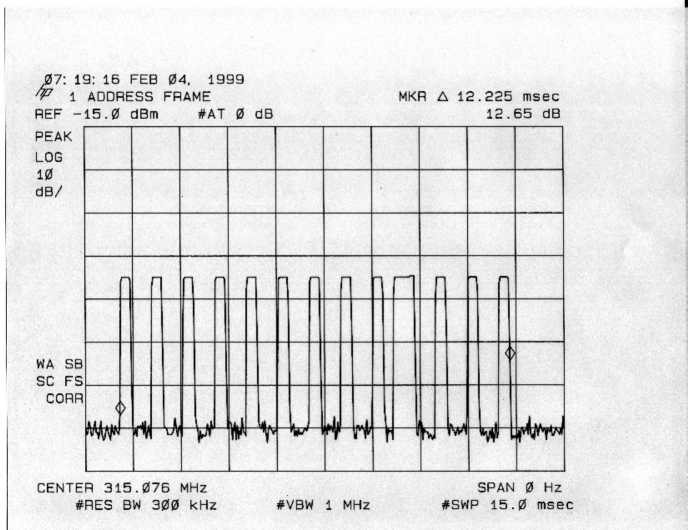

time domain 3 one address frame 1 long &12 short pulses	Test Report	1999-04-14 00:00:00	jpeg
time domain 2 short pulse .3225ms	Test Report	1999-04-14 00:00:00	jpeg

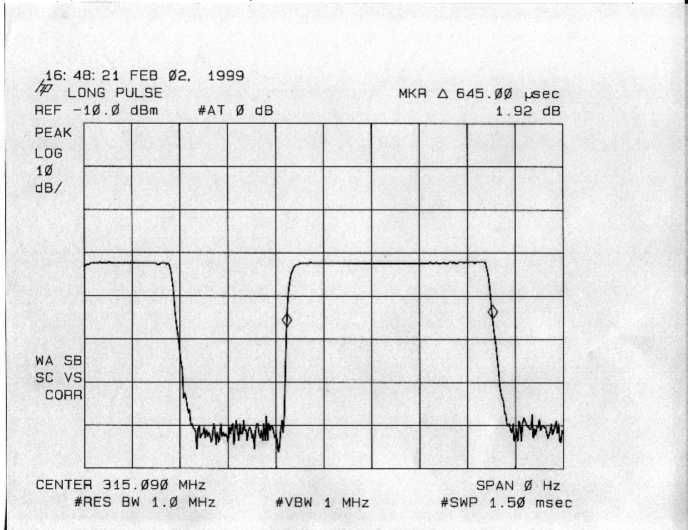

time domain 1 long pulse .645ms	Test Report	1999-04-14 00:00:00	jpeg
occupied bandwidth	Test Report	1999-04-14 00:00:00	jpeg
product manual	Users Manual	1999-04-14 00:00:00	pdf

Equipment	Portable Remote Controlled Scoreboard
FRN	9999999999
Grantee Code	OB2
Product Code	-STDREM
Applicant Business	ScoreTronics, Inc.
Business Address	1110 Jorie Blvd, Suite 104 , Oak Brook,Illinois United States 60523
TCB Scope
TCB Email
Applicant	Niel E Nielsen – President
Applicant Phone
Applicant Fax
Applicant Email	[email protected]
Applicant MailStop
Test Firm
Test Firm Contact
Test Firm Phone
Test Firm Fax
Test Firm Email
Certified By	Niel E. Nielsen – President
